Perfect O2U2 Regular Nested Knots

How to configure single-strand (perfect) Regular Nested Knots (RNK) with an O2U2 coding pattern.

Examples

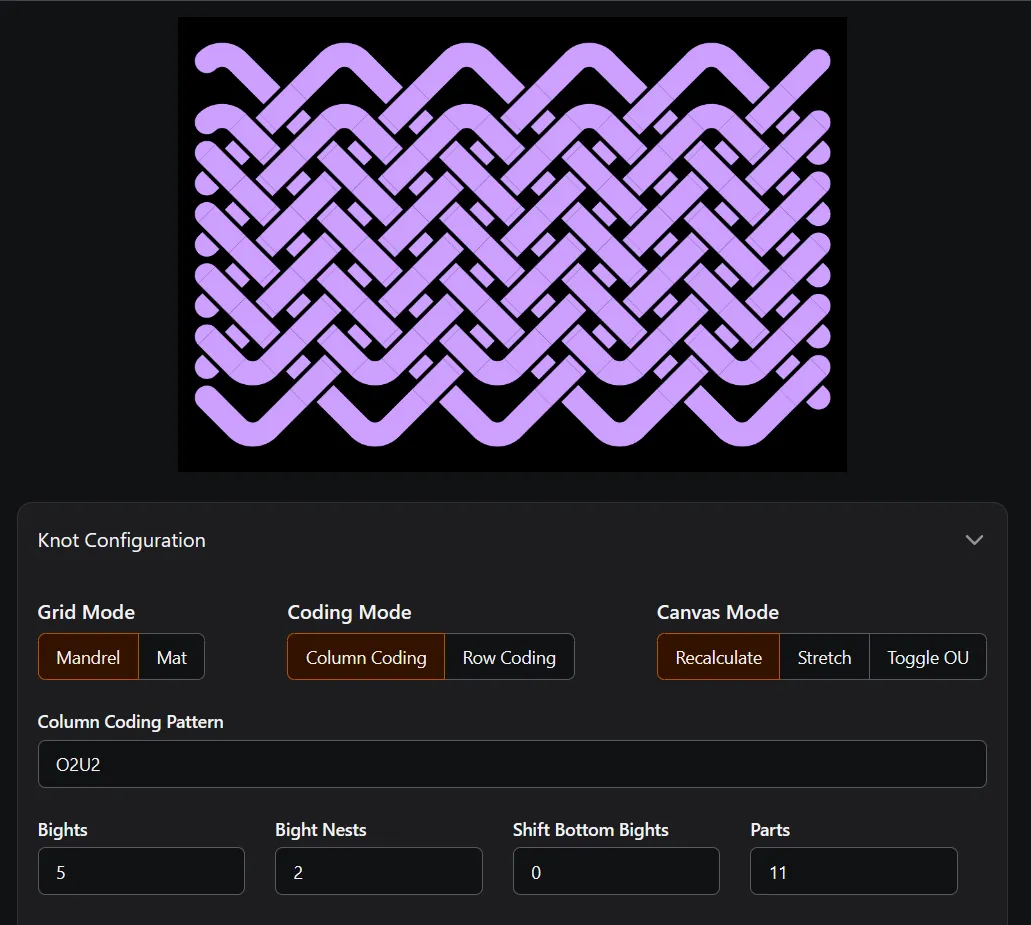

Column Coded

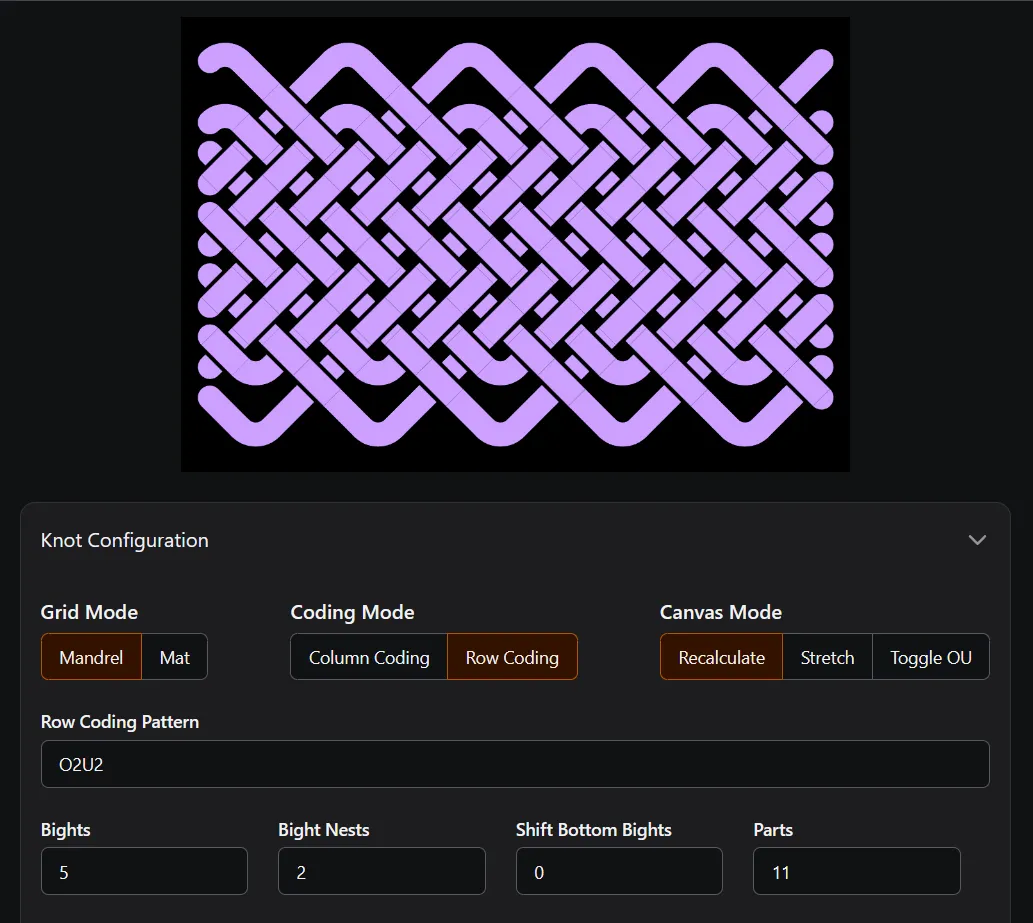

Row Coded

Knot Configuration

Input	Value
Grid Mode	Mandrel
Coding Mode	Column, Row
Coding Pattern	O2U2
Bight Nests	2
Shift Bottom Bights	0

2 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
2	5	8	8	12	6
2	7	8	10	20	10
2	9	8	12	28	14
2	11	8	14	36	18
2	13	8	16	44	22
2	15	8	18	52	26
2	17	8	20	60	30
2	19	8	22	68	34
2	21	8	24	76	38
2	23	8	26	84	42
2	25	8	28	92	46
2	27	8	30	100	50
2	29	8	32	108	54

3 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
3	5	12	8	18	9
3	7	12	10	30	15
3	11	12	14	54	27
3	13	12	16	66	33
3	17	12	20	90	45
3	19	12	22	102	51
3	23	12	26	126	63
3	25	12	28	138	69
3	29	12	32	162	81

4 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
4	5	16	8	24	12
4	7	16	10	40	20
4	9	16	12	56	28
4	11	16	14	72	36
4	13	16	16	88	44
4	15	16	18	104	52
4	17	16	20	120	60
4	19	16	22	136	68
4	21	16	24	152	76
4	23	16	26	168	84
4	25	16	28	184	92
4	27	16	30	200	100
4	29	16	32	216	108

5 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
5	7	20	10	50	25
5	9	20	12	70	35
5	11	20	14	90	45
5	13	20	16	110	55
5	17	20	20	150	75
5	19	20	22	170	85
5	21	20	24	190	95
5	23	20	26	210	105
5	27	20	30	250	125
5	29	20	32	270	135

6 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
6	5	24	8	36	18
6	7	24	10	60	30
6	11	24	14	108	54
6	13	24	16	132	66
6	17	24	20	180	90
6	19	24	22	204	102
6	23	24	26	252	126
6	25	24	28	276	138
6	29	24	32	324	162

7 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
7	5	28	8	42	21
7	9	28	12	98	49
7	11	28	14	126	63
7	13	28	16	154	77
7	15	28	18	182	91
7	17	28	20	210	105
7	19	28	22	238	119
7	23	28	26	294	147
7	25	28	28	322	161
7	27	28	30	350	175
7	29	28	32	378	189

2 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
8	5	32	8	48	24
8	7	32	10	80	40
8	9	32	12	112	56
8	11	32	14	144	72
8	13	32	16	176	88
8	15	32	18	208	104
8	17	32	20	240	120
8	19	32	22	272	136
8	21	32	24	304	152
8	23	32	26	336	168
8	25	32	28	368	184
8	27	32	30	400	200
8	29	32	32	432	216

9 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
9	5	36	8	54	27
9	7	36	10	90	45
9	11	36	14	162	81
9	13	36	16	198	99
9	17	36	20	270	135
9	19	36	22	306	153
9	23	36	26	378	189
9	25	36	28	414	207
9	29	36	32	486	243

10 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
10	7	40	10	100	50
10	9	40	12	140	70
10	11	40	14	180	90
10	13	40	16	220	110
10	17	40	20	300	150
10	19	40	22	340	170
10	21	40	24	380	190
10	23	40	26	420	210
10	27	40	30	500	250
10	29	40	32	540	270

11 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
11	5	44	8	66	33
11	7	44	10	110	55
11	9	44	12	154	77
11	13	44	16	242	121
11	15	44	18	286	143
11	17	44	20	330	165
11	19	44	22	374	187
11	21	44	24	418	209
11	23	44	26	462	231
11	25	44	28	506	253
11	27	44	30	550	275
11	29	44	32	594	297

12 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
12	5	48	8	72	36
12	7	48	10	120	60
12	11	48	14	216	108
12	13	48	16	264	132
12	17	48	20	360	180
12	19	48	22	408	204
12	23	48	26	504	252
12	25	48	28	552	276
12	29	48	32	648	324

13 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
13	5	52	8	78	39
13	7	52	10	130	65
13	9	52	12	182	91
13	11	52	14	234	117
13	15	52	18	338	169
13	17	52	20	390	195
13	19	52	22	442	221
13	21	52	24	494	247
13	23	52	26	546	273
13	25	52	28	598	299
13	27	52	30	650	325
13	29	52	32	702	351

14 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
14	5	56	8	84	42
14	9	56	12	196	98
14	11	56	14	252	126
14	13	56	16	308	154
14	15	56	18	364	182
14	17	56	20	420	210
14	19	56	22	476	238
14	23	56	26	588	294
14	25	56	28	644	322
14	27	56	30	700	350
14	29	56	32	756	378

15 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
15	7	60	10	150	75
15	11	60	14	270	135
15	13	60	16	330	165
15	17	60	20	450	225
15	19	60	22	510	255
15	23	60	26	630	315
15	29	60	32	810	405
