Barber Pole Pattern

How to configure knots with a 2-strand barber pole pattern.

Examples

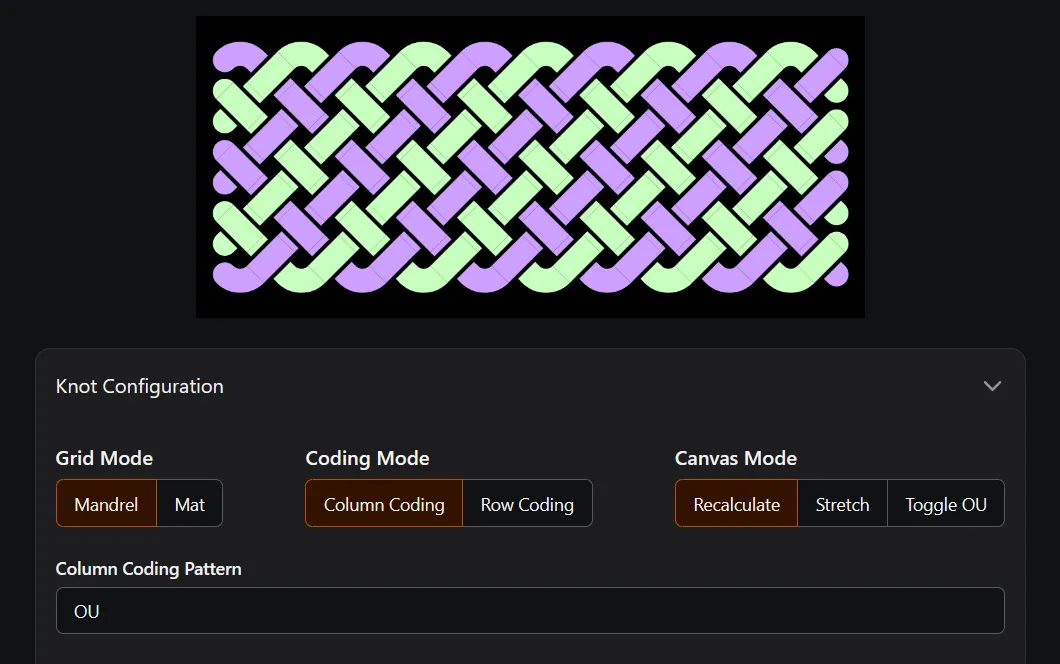

Column Coded

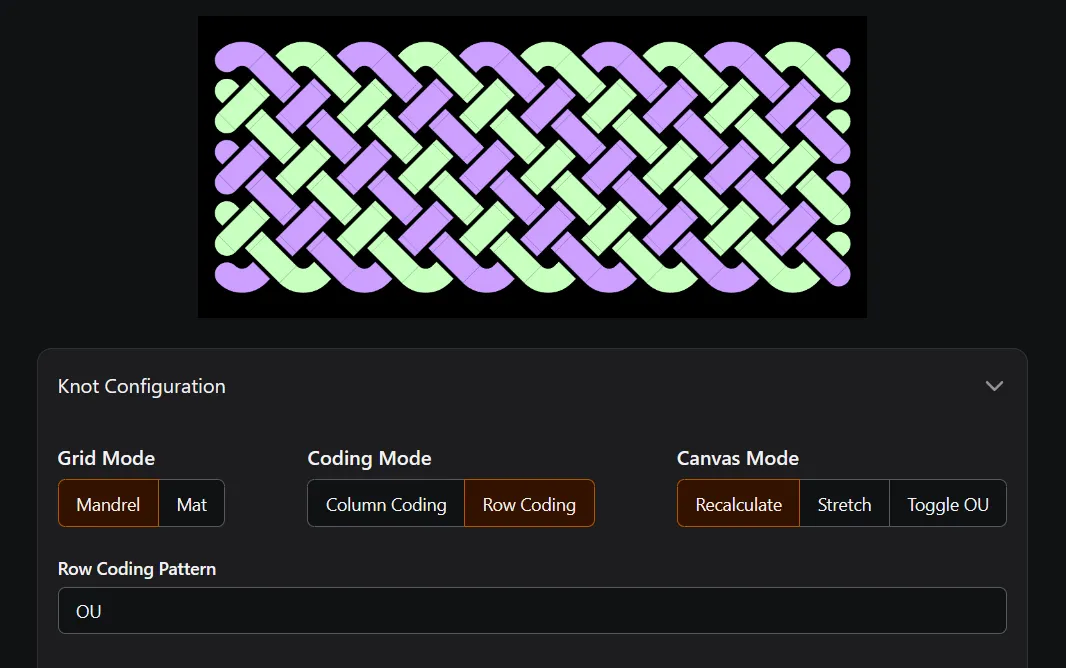

Row Coded

Knot Configuration

Input	Value
Grid Mode	Mandrel
Coding Mode	Column, Row
Coding Pattern	O1U1
Bight Nests	1
Shift Bottom Bights	0

2 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
2	4	4	5	6	6
2	6	4	7	10	10
2	8	4	9	14	14
2	10	4	11	18	18
2	12	4	13	22	22
2	14	4	15	26	26
2	16	4	17	30	30
2	18	4	19	34	34
2	20	4	21	38	38
2	22	4	23	42	42
2	24	4	25	46	46
2	26	4	27	50	50
2	28	4	29	54	54
2	30	4	31	58	58

4 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
4	6	8	7	20	20
4	10	8	11	36	36
4	14	8	15	52	52
4	18	8	19	68	68
4	22	8	23	84	84
4	26	8	27	100	100
4	30	8	31	116	116

6 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
6	4	12	5	18	18
6	8	12	9	42	42
6	10	12	11	54	54
6	14	12	15	78	78
6	16	12	17	90	90
6	20	12	21	114	114
6	22	12	23	126	126
6	26	12	27	150	150
6	28	12	29	162	162

8 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
8	6	16	7	40	40
8	10	16	11	72	72
8	14	16	15	104	104
8	18	16	19	136	136
8	22	16	23	168	168
8	26	16	27	200	200
8	30	16	31	232	232

10 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
10	4	20	5	30	30
10	6	20	7	50	50
10	8	20	9	70	70
10	12	20	13	110	110
10	14	20	15	130	130
10	16	20	17	150	150
10	18	20	19	170	170
10	22	20	23	210	210
10	24	20	25	230	230
10	26	20	27	250	250
10	28	20	29	270	270

12 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
12	10	24	11	108	108
12	14	24	15	156	156
12	22	24	23	252	252
12	26	24	27	300	300

14 Bights

Bights	Parts	Columns	Rows	Crossings	Facets
14	4	28	5	42	42
14	6	28	7	70	70
14	8	28	9	98	98
14	10	28	11	126	126
14	12	28	13	154	154
14	16	28	17	210	210
14	18	28	19	238	238
14	20	28	21	266	266
14	22	28	23	294	294
14	24	28	25	322	322
14	26	28	27	350	350
14	30	28	31	406	406
