2-Strand Pineapple Knots

How to configure 2-strand Pineapple Knots (PK).

Examples

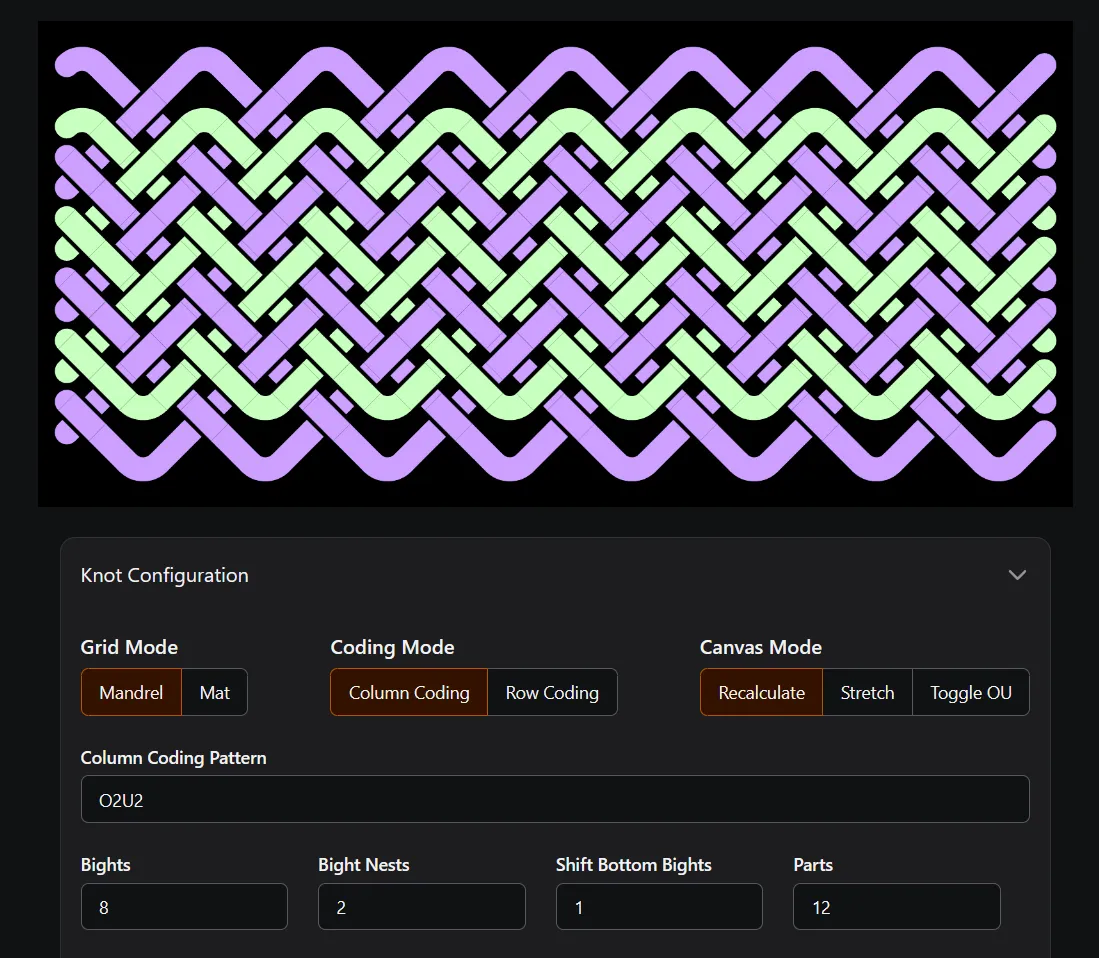

Type 1 Column Coded

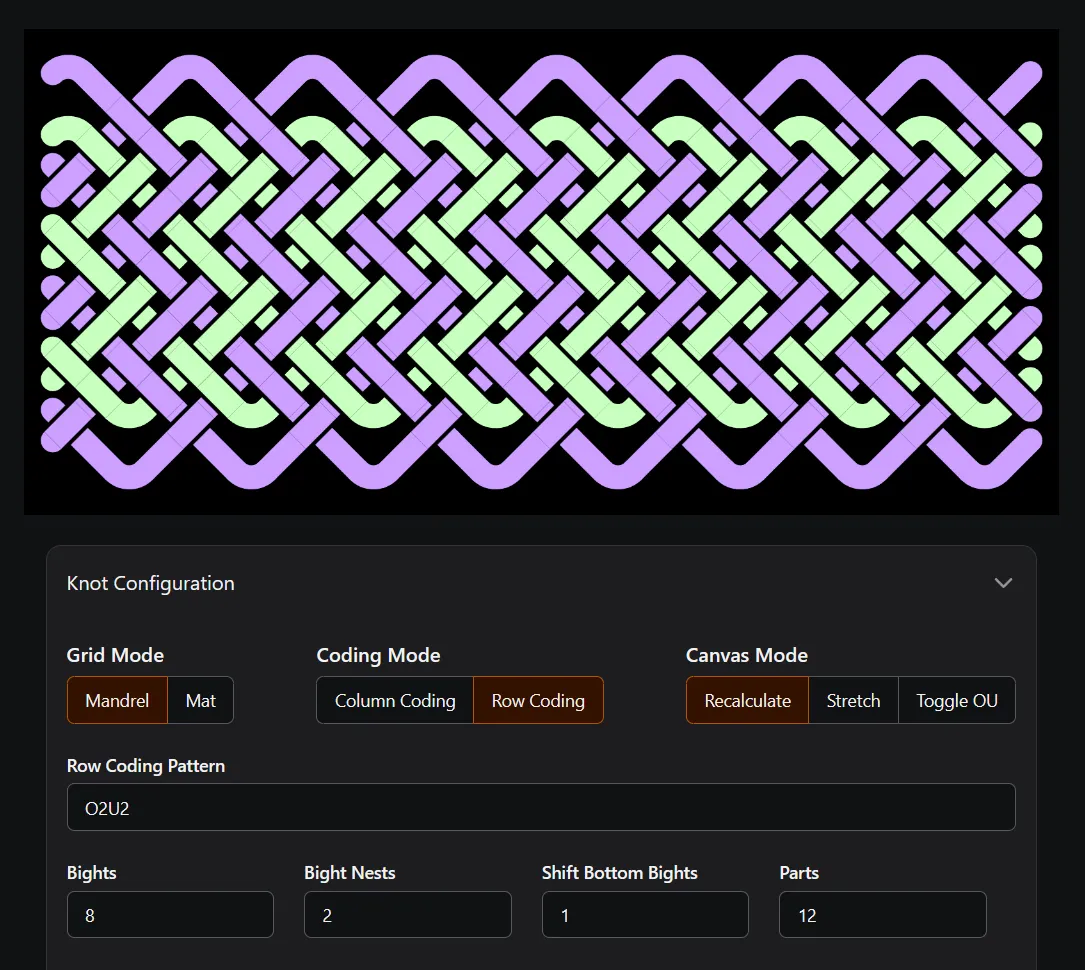

Type 1 Row Coded

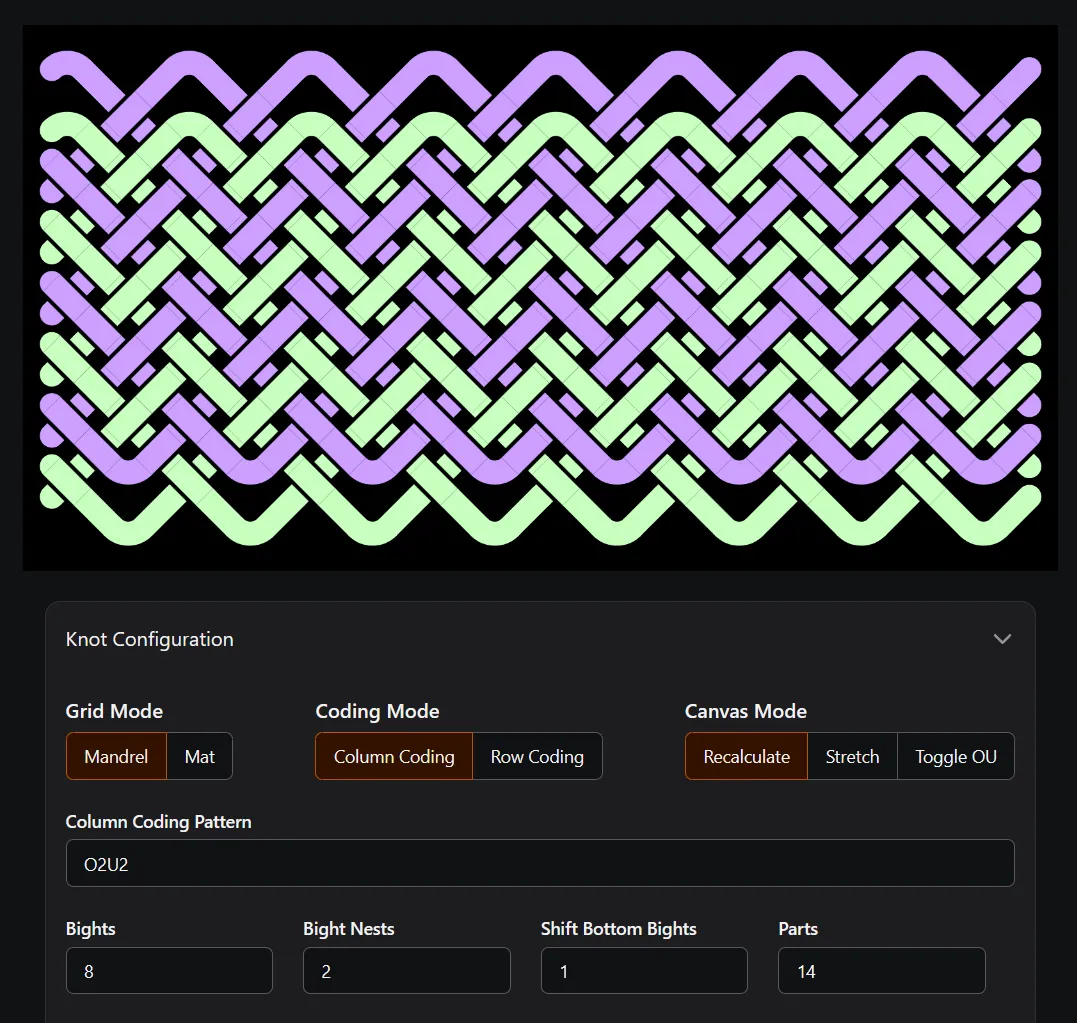

Type 2 Column Coded

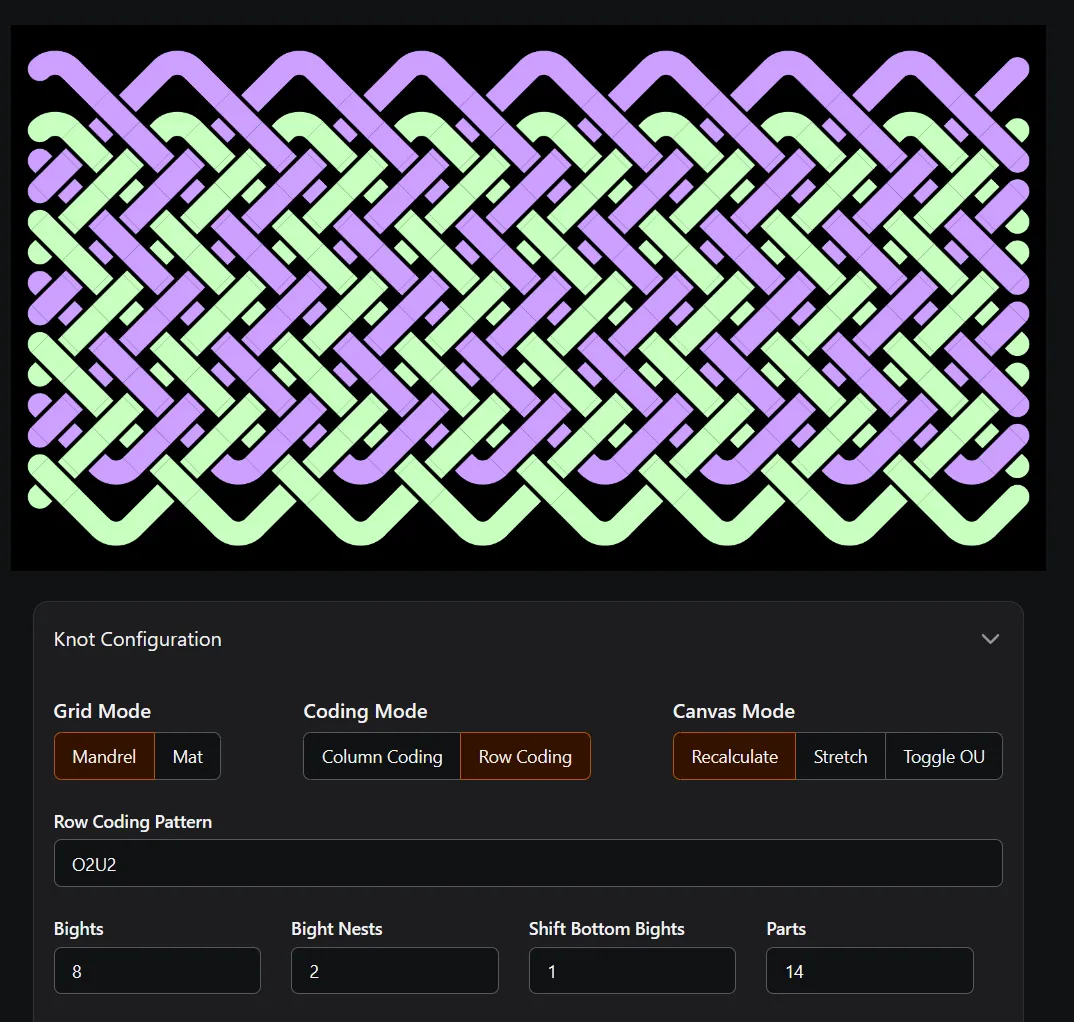

Type 2 Row Coded

Knot Configuration

Input	Value
Grid Mode	Mandrel
Coding Mode	Column, Row
Coding Pattern	O2U2
Bight Nests	2
Shift Bottom Bights	1

2 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
2	6	8	9	16	8	2
2	8	8	11	24	12	1
2	10	8	13	32	16	2
2	12	8	15	40	20	1
2	14	8	17	48	24	2
2	16	8	19	56	28	1
2	18	8	21	64	32	2
2	20	8	23	72	36	1
2	22	8	25	80	40	2
2	24	8	27	88	44	1
2	26	8	29	96	48	2
2	28	8	31	104	52	1
2	30	8	33	112	56	2

3 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
3	10	12	13	48	24	2
3	12	12	15	60	30	1
3	14	12	17	72	36	2
3	22	12	25	120	60	2
3	24	12	27	132	66	1
3	26	12	29	144	72	2

4 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
4	6	16	9	32	16	2
4	8	16	11	48	24	1
4	10	16	13	64	32	2
4	12	16	15	80	40	1
4	14	16	17	96	48	2
4	16	16	19	112	56	1
4	18	16	21	128	64	2
4	20	16	23	144	72	1
4	22	16	25	160	80	2
4	24	16	27	176	88	1
4	26	16	29	192	96	2
4	28	16	31	208	104	1
4	30	16	33	224	112	2

5 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
5	6	20	9	40	20	2
5	14	20	17	120	60	2
5	16	20	19	140	70	1
5	18	20	21	160	80	2
5	20	20	23	180	90	1
5	22	20	25	200	100	2
5	24	20	27	220	110	1
5	26	20	29	240	120	2

6 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
6	10	24	13	96	48	2
6	12	24	15	120	60	1
6	14	24	17	144	72	2
6	22	24	25	240	120	2
6	24	24	27	264	132	1
6	26	24	29	288	144	2

7 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
7	6	28	9	56	28	2
7	8	28	11	84	42	1
7	10	28	13	112	56	2
7	18	28	21	224	112	2
7	20	28	23	252	126	1
7	22	28	25	280	140	2
7	24	28	27	308	154	1
7	26	28	29	336	168	2
7	28	28	31	364	182	1
7	30	28	33	392	196	2

8 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
8	6	32	9	64	32	2
8	8	32	11	96	48	1
8	10	32	13	128	64	2
8	12	32	15	160	80	1
8	14	32	17	192	96	2
8	16	32	19	224	112	1
8	18	32	21	256	128	2
8	20	32	23	288	144	1
8	22	32	25	320	160	2
8	24	32	27	352	176	1
8	26	32	29	384	192	2
8	28	32	31	416	208	1
8	30	32	33	448	224	2

9 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
9	10	36	13	144	72	2
9	12	36	15	180	90	1
9	14	36	17	216	108	2
9	22	36	25	360	180	2
9	24	36	27	396	198	1
9	26	36	29	432	216	2

10 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
10	6	40	9	80	40	2
10	14	40	17	240	120	2
10	16	40	19	280	140	1
10	18	40	21	320	160	2
10	20	40	23	360	180	1
10	22	40	25	400	200	2
10	24	40	27	440	220	1
10	26	40	29	480	240	2

11 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
11	6	44	9	88	44	2
11	8	44	11	132	66	1
11	10	44	13	176	88	2
11	12	44	15	220	110	1
11	14	44	17	264	132	2
11	16	44	19	308	154	1
11	18	44	21	352	176	2
11	26	44	29	528	264	2
11	28	44	31	572	286	1
11	30	44	33	616	308	2
