RNK Barber Pole Pattern

How to configure 2-strand Regular Nested Knots (RNK) with a barber pole pattern.

Examples

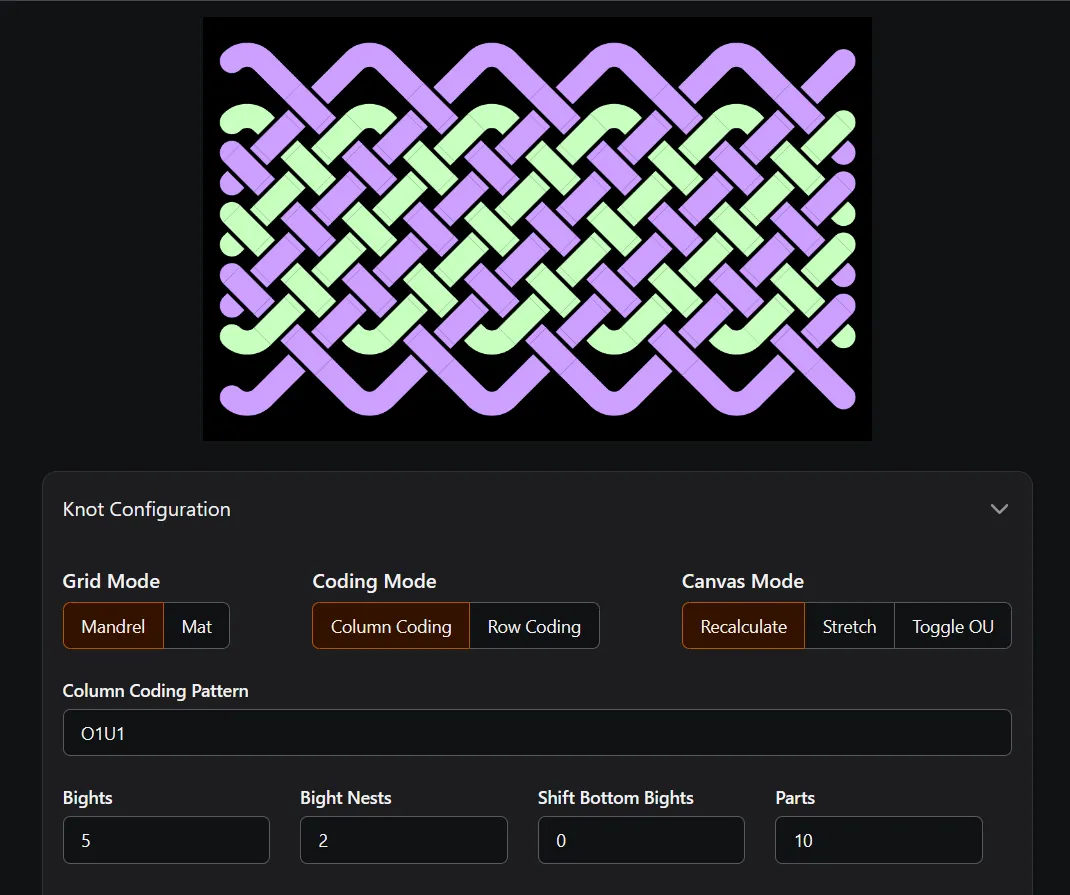

Type 1

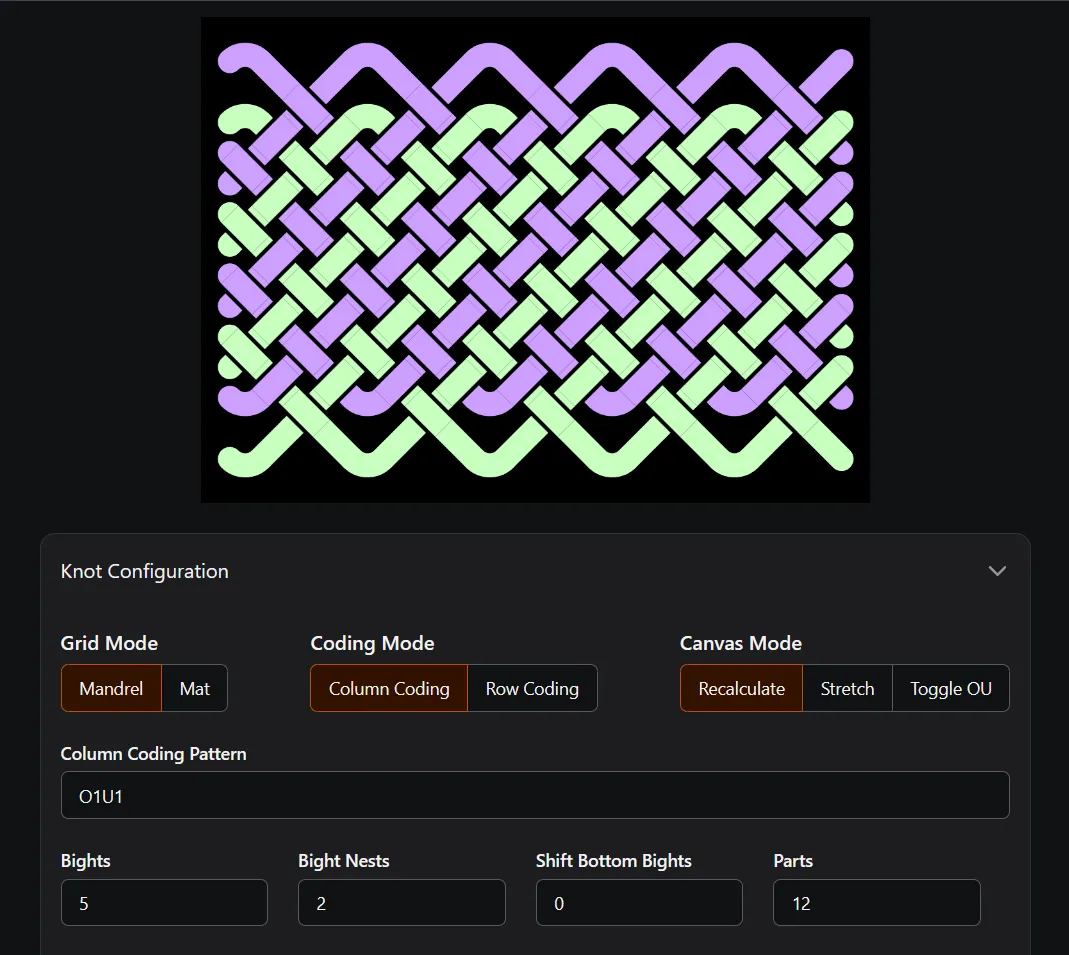

Type 2

Knot Configuration

Input	Value
Grid Mode	Mandrel
Coding Mode	Column, Row
Coding Pattern	O1U1
Bight Nests	2
Shift Bottom Bights	0

3 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
3	4	12	7	12	12	2
3	6	12	9	24	24	1
3	8	12	11	36	36	2
3	16	12	19	84	84	2
3	18	12	21	96	96	1
3	20	12	23	108	108	2
3	28	12	31	156	156	2
3	30	12	33	168	168	1

5 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
5	4	20	7	20	20	2
5	6	20	9	40	40	1
5	8	20	11	60	60	2
5	10	20	13	80	80	1
5	12	20	15	100	100	2
5	14	20	17	120	120	1
5	16	20	19	140	140	2
5	24	20	27	220	220	2
5	26	20	29	240	240	1
5	28	20	31	260	260	2
5	30	20	33	280	280	1

7 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
7	4	28	7	28	28	2
7	6	28	9	56	56	1
7	8	28	11	84	84	2
7	10	28	13	112	112	1
7	12	28	15	140	140	2
7	14	28	17	168	168	1
7	16	28	19	196	196	2
7	18	28	21	224	224	1
7	20	28	23	252	252	2
7	22	28	25	280	280	1
7	24	28	27	308	308	2

9 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
9	4	36	7	36	36	2
9	6	36	9	72	72	1
9	8	36	11	108	108	2
9	16	36	19	252	252	2
9	18	36	21	288	288	1
9	20	36	23	324	324	2
9	28	36	31	468	468	2
9	30	36	33	504	504	1

11 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
11	4	44	7	44	44	2
11	6	44	9	88	88	1
11	8	44	11	132	132	2
11	10	44	13	176	176	1
11	12	44	15	220	220	2
11	14	44	17	264	264	1
11	16	44	19	308	308	2
11	18	44	21	352	352	1
11	20	44	23	396	396	2
11	22	44	25	440	440	1
11	24	44	27	484	484	2
11	26	44	29	528	528	1
11	28	44	31	572	572	2
11	30	44	33	616	616	1

13 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
13	4	52	7	52	52	2
13	6	52	9	104	104	1
13	8	52	11	156	156	2
13	10	52	13	208	208	1
13	12	52	15	260	260	2
13	14	52	17	312	312	1
13	16	52	19	364	364	2
13	18	52	21	416	416	1
13	20	52	23	468	468	2
13	22	52	25	520	520	1
13	24	52	27	572	572	2
13	26	52	29	624	624	1
13	28	52	31	676	676	2
13	30	52	33	728	728	1

15 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
15	4	60	7	60	60	2
15	6	60	9	120	120	1
15	8	60	11	180	180	2
15	16	60	19	420	420	2
15	28	60	31	780	780	2
15	30	60	33	840	840	1
