3-Strand Pineapple Knots

How to configure 3-strand Pineapple Knots (PK).

Examples

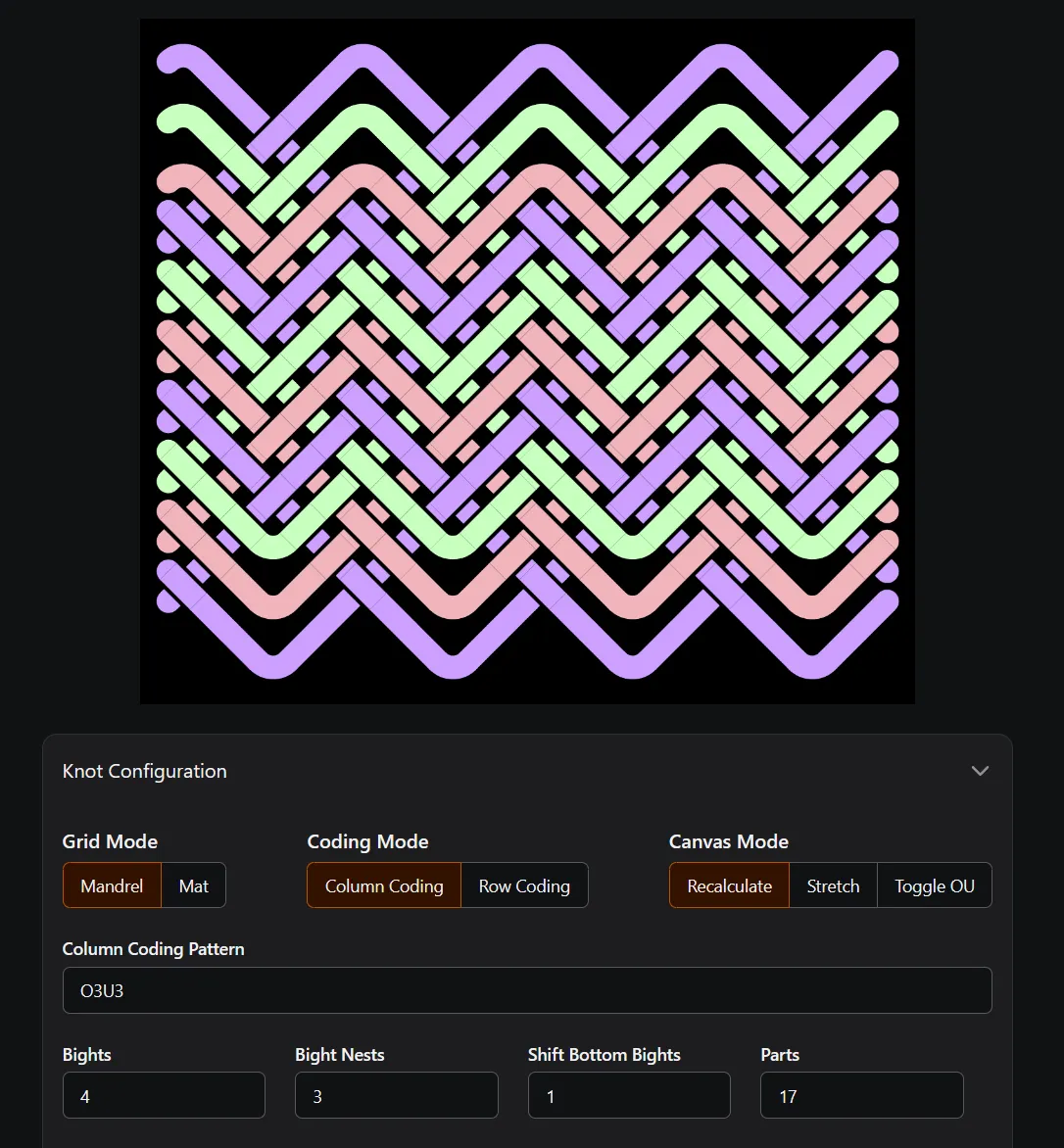

Type 1 Column Coded

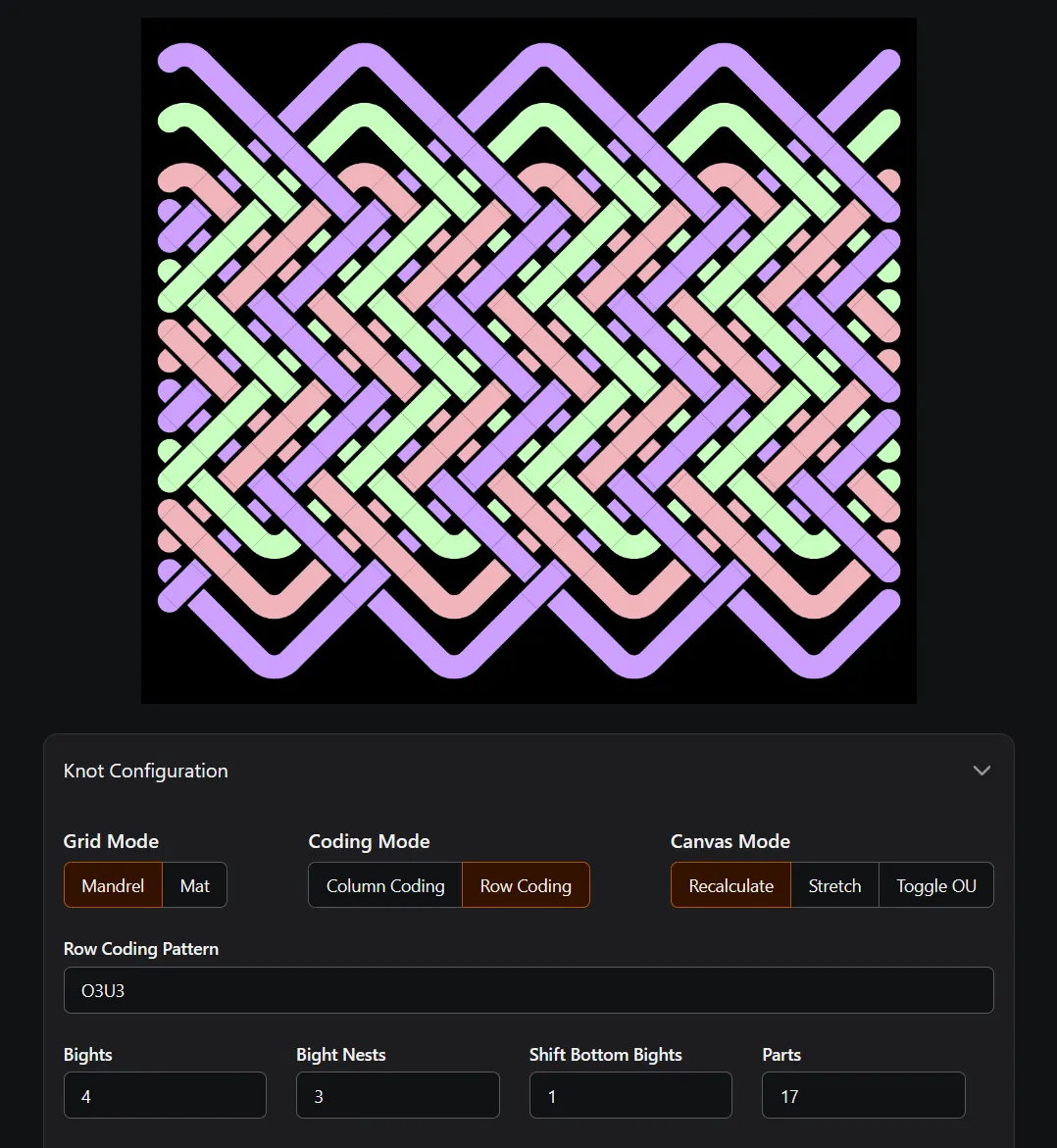

Type 1 Row Coded

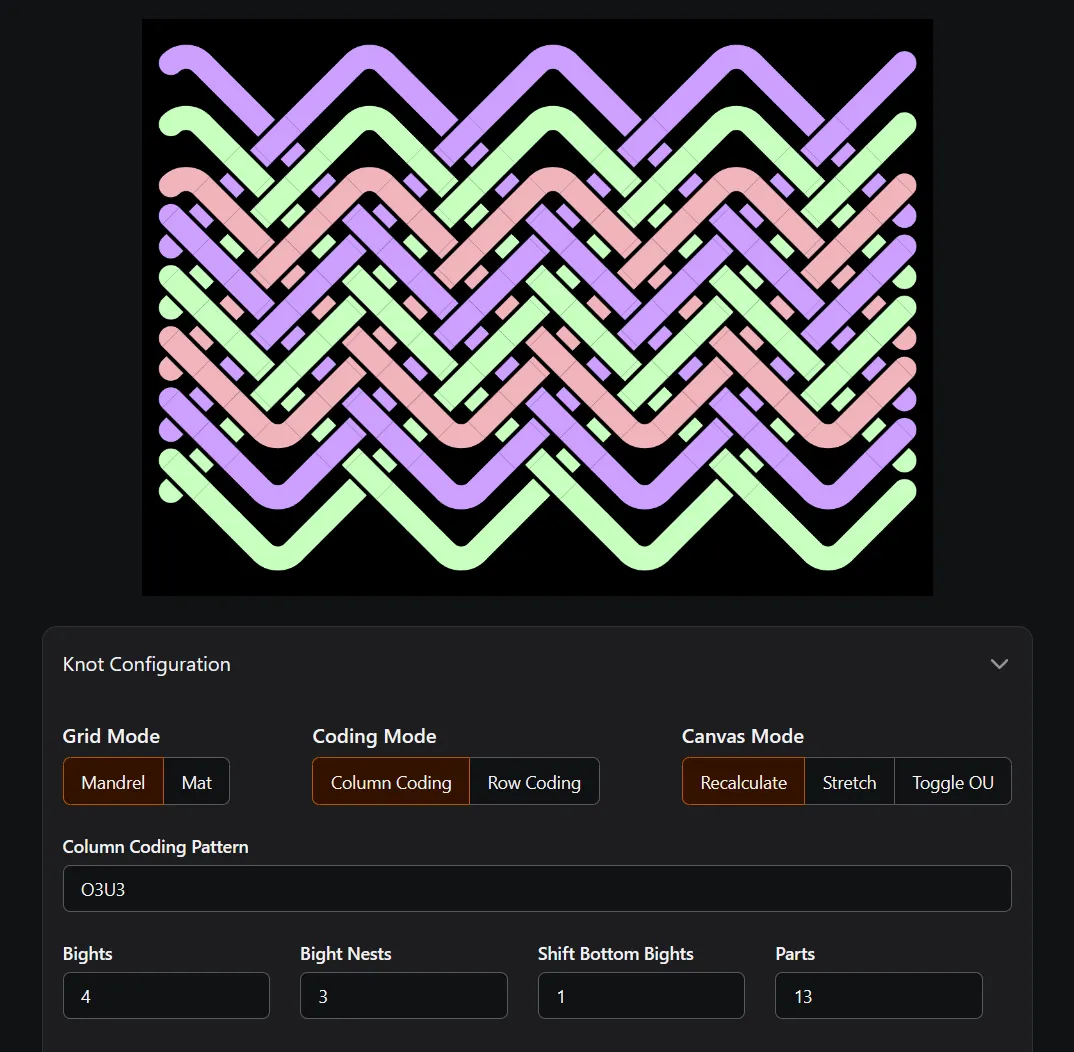

Type 2 Column Coded

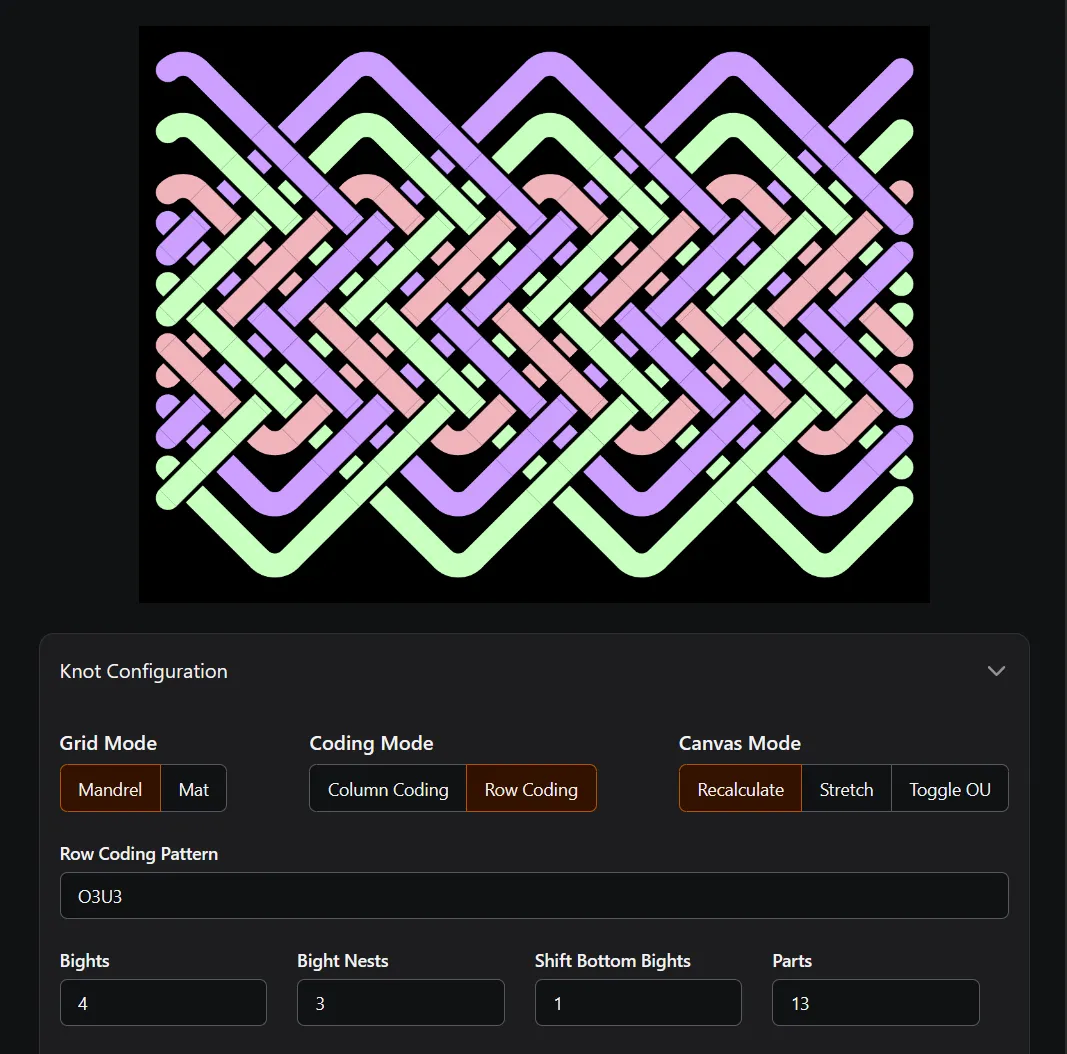

Type 2 Row Coded

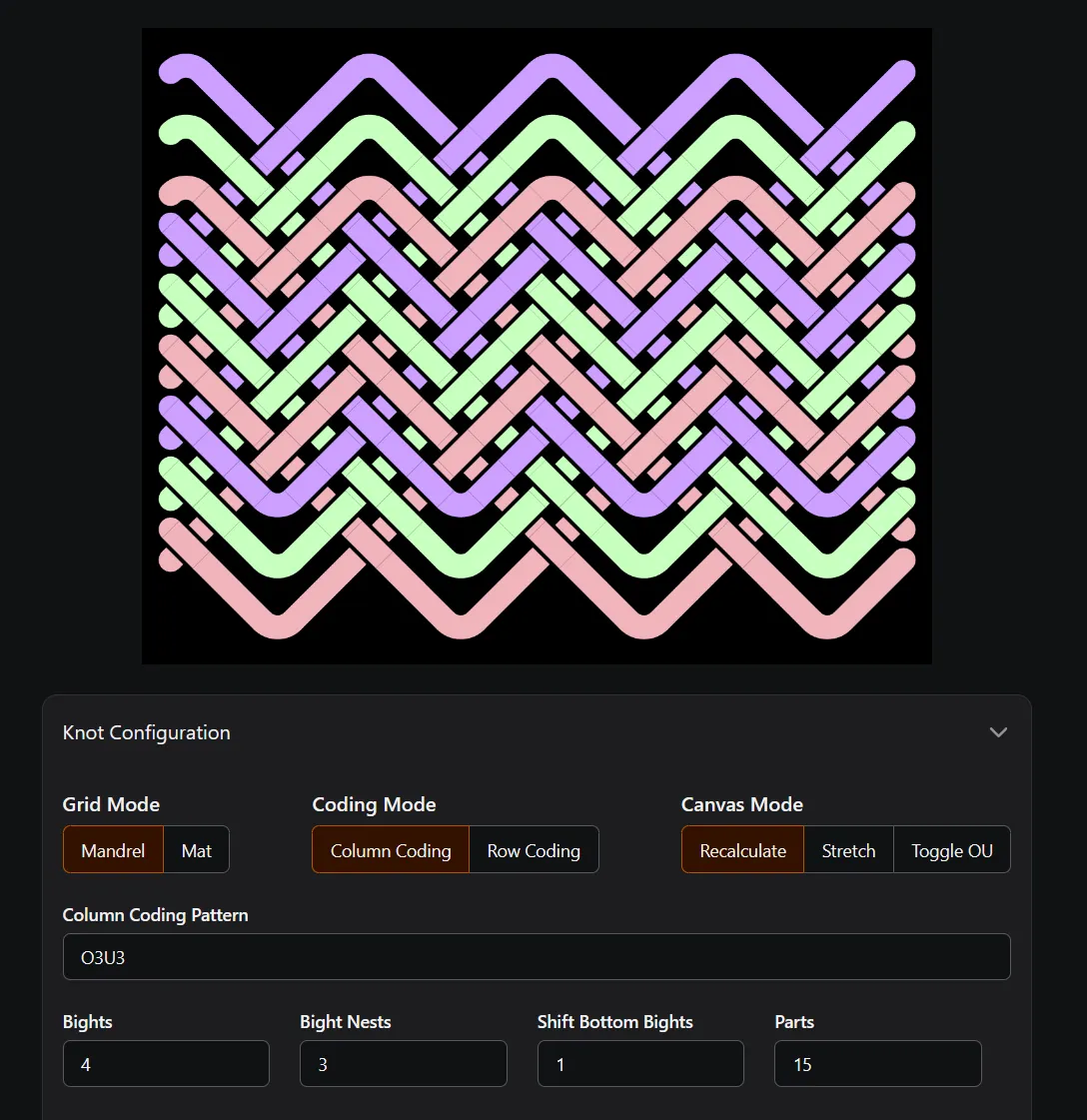

Type 3 Column Coded

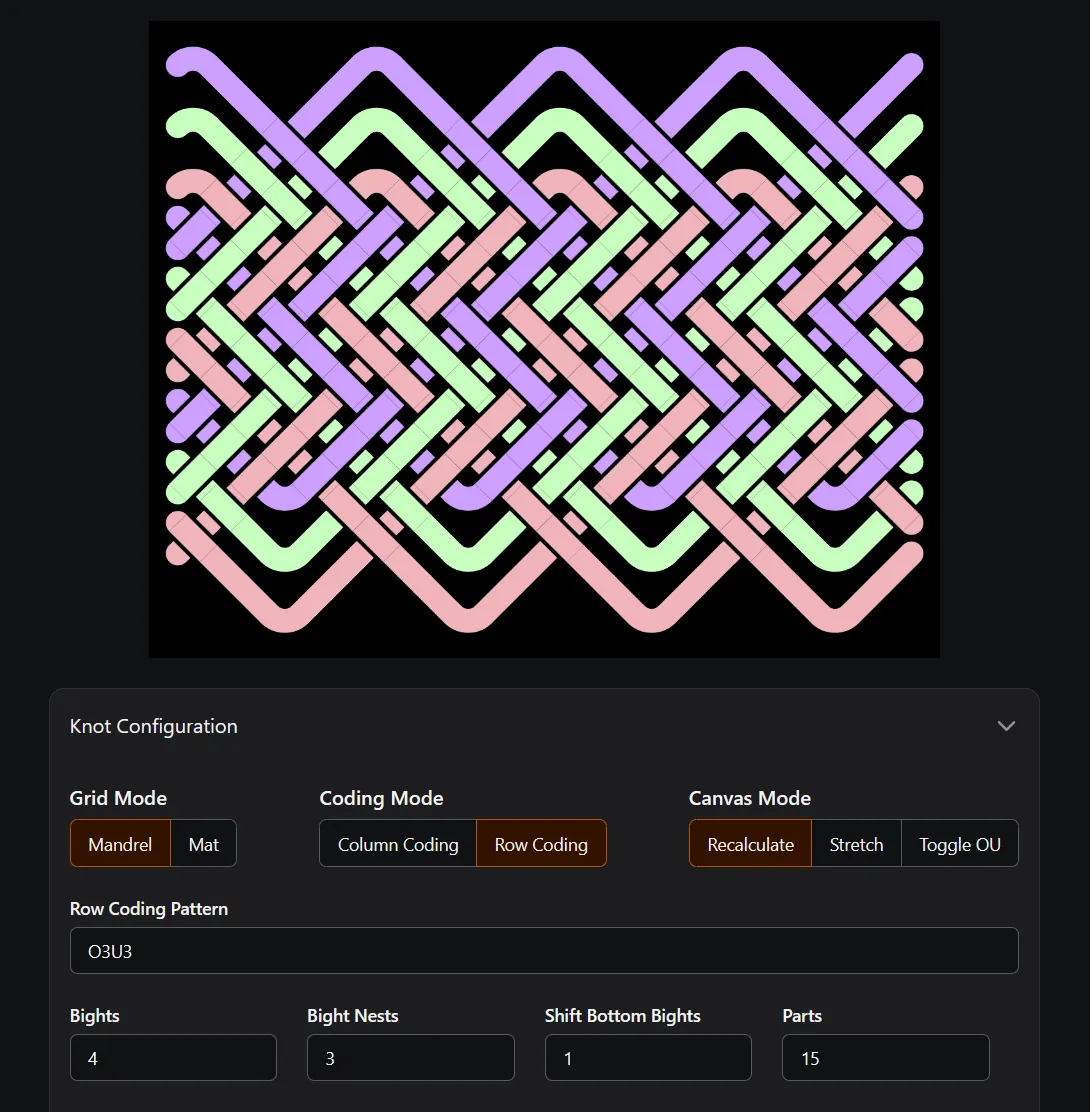

Type 3 Row Coded

Knot Configuration

Input	Value
Grid Mode	Mandrel
Coding Mode	Column, Row
Coding Pattern	O3U3
Bight Nests	3
Shift Bottom Bights	1

2 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
2	9	12	14	36	12	3
2	11	12	16	48	16	1
2	13	12	18	60	20	2
2	15	12	20	72	24	3
2	17	12	22	84	28	1
2	19	12	24	96	32	2
2	21	12	26	108	36	3
2	23	12	28	120	40	1
2	25	12	30	132	44	2
2	27	12	32	144	48	3
2	29	12	34	156	52	1

3 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
3	13	18	18	90	30	2
3	15	18	20	108	36	3
3	17	18	22	126	42	1
3	19	18	24	144	48	2
3	21	18	26	162	54	3

4 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
4	9	24	14	72	24	3
4	11	24	16	96	32	1
4	13	24	18	120	40	2
4	15	24	20	144	48	3
4	17	24	22	168	56	1
4	19	24	24	192	64	2
4	21	24	26	216	72	3
4	23	24	28	240	80	1
4	25	24	30	264	88	2
4	27	24	32	288	96	3
4	29	24	34	312	104	1

5 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
5	9	30	14	90	30	3
5	21	30	26	270	90	3
5	23	30	28	300	100	1
5	25	30	30	330	110	2
5	27	30	32	360	120	3
5	29	30	34	390	130	1

6 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
6	15	36	20	216	72	3
6	17	36	22	252	84	1
6	19	36	24	288	96	2
6	21	36	26	324	108	3

7 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
7	9	42	14	126	42	3
7	11	42	16	168	56	1
7	13	42	18	210	70	2
7	15	42	20	252	84	3
7	27	42	32	504	168	3
7	29	42	34	546	182	1

8 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
8	9	48	14	144	48	3
8	11	48	16	192	64	1
8	13	48	18	240	80	2
8	15	48	20	288	96	3
8	17	48	22	336	112	1
8	19	48	24	384	128	2
8	21	48	26	432	144	3
8	23	48	28	480	160	1
8	25	48	30	528	176	2
8	27	48	32	576	192	3
8	29	48	34	624	208	1

9 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
9	15	54	20	324	108	3
9	17	54	22	378	126	1
9	19	54	24	432	144	2
9	21	54	26	486	162	3

10 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
10	9	60	14	180	60	3
10	21	60	26	540	180	3
10	23	60	28	600	200	1
10	25	60	30	660	220	2
10	27	60	32	720	240	3
10	29	60	34	780	260	1

11 Bights

Bights	Parts	Columns	Rows	Crossings	Facets	Type
11	9	66	14	198	66	3
11	11	66	16	264	88	1
11	13	66	18	330	110	2
11	15	66	20	396	132	3
11	17	66	22	462	154	1
11	19	66	24	528	176	2
11	21	66	26	594	198	3
11	23	66	28	660	220	1
11	25	66	30	726	242	2
11	27	66	32	792	264	3
